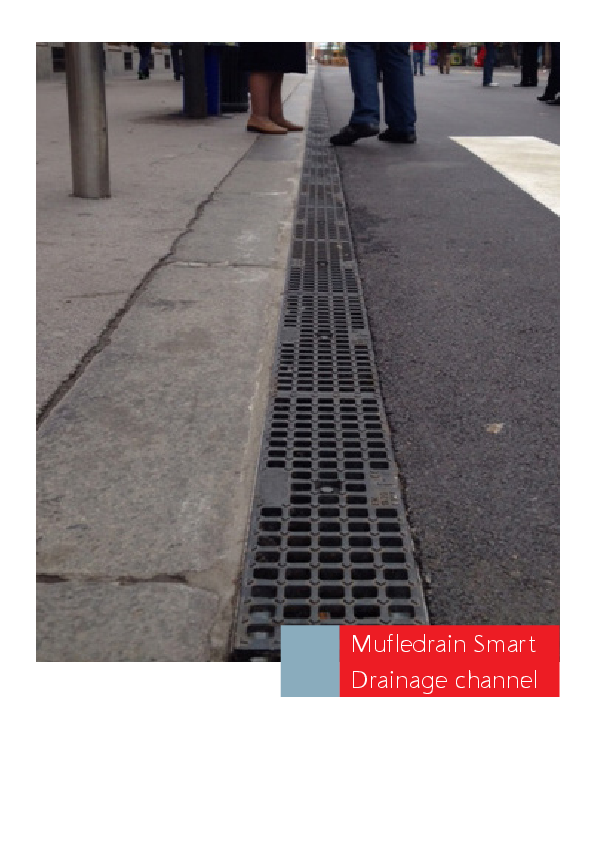

MUFLE SMART, plastic drainage channels

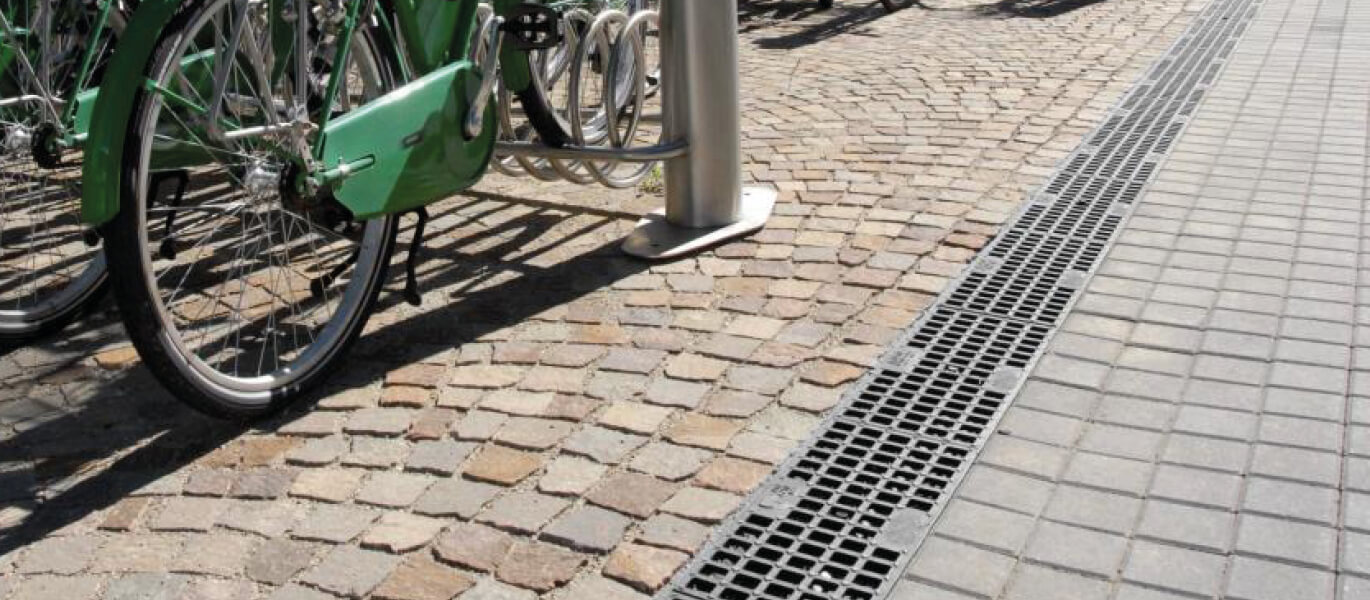

Immagine prodotto_ACO Xtraline S_plastic channel

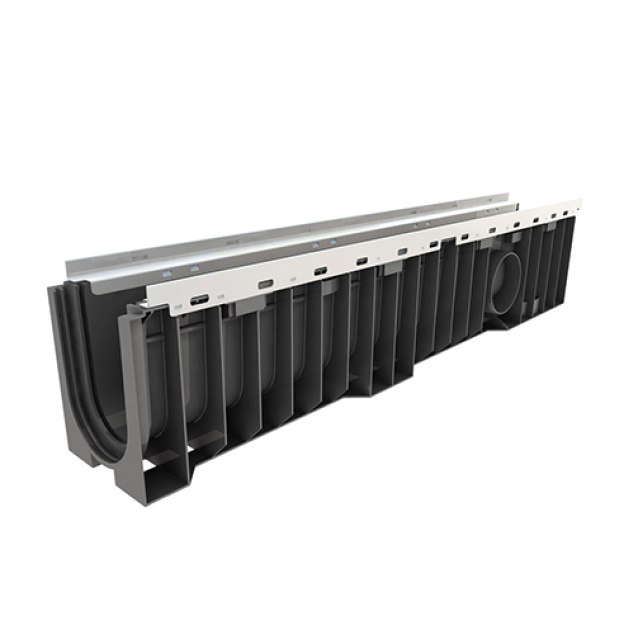

The MUFLE SMART drainage system represents the perfect answer for the civil, industrial and infrastructural application needs. The versatility of these channels is a consequence of its steel rail (galvanized or stainless steel), necessary to improve the load distribution coming from the pavement surface or from underground forces. At the same time, it is the perfect protection for the complete system from all the forces coming from the surrounding areas.
The 2,5mm rail thickness in the traffic exposure area and 1,2 mm thickness in the grating support area, grants a C250 load class certification. The fixing system consists of 2 bars and bolts per each single meter.

Main features

The channel body is completely made of plastic, certified for load class A15, B125 and C250 according to EN 1433: 2002
Galvanized steel and stainless steel rail are standard for this product
Available in three different nominal widths: 100, 150, 200 mm
With vertical and lateral knockouts
Vertical outlet kit Ø100 and Ø110 mm for channels H55 and H80 mm

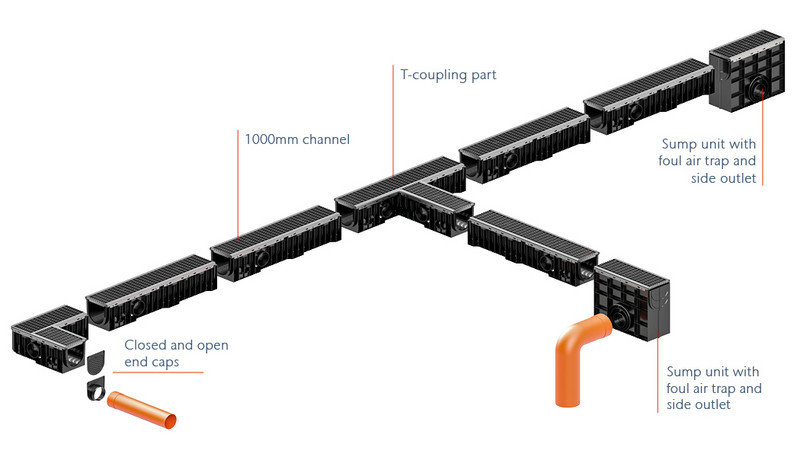

Sump unit with foul air trap

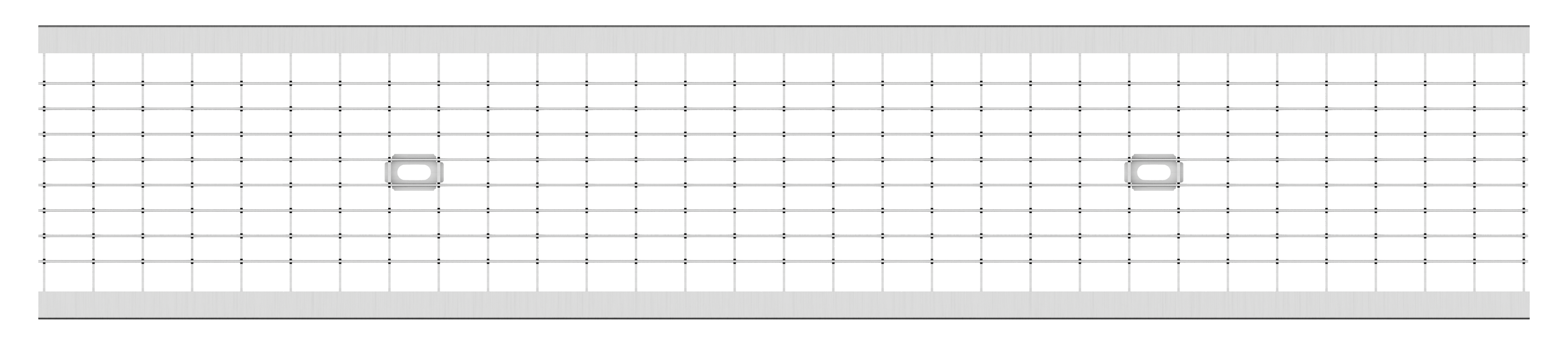

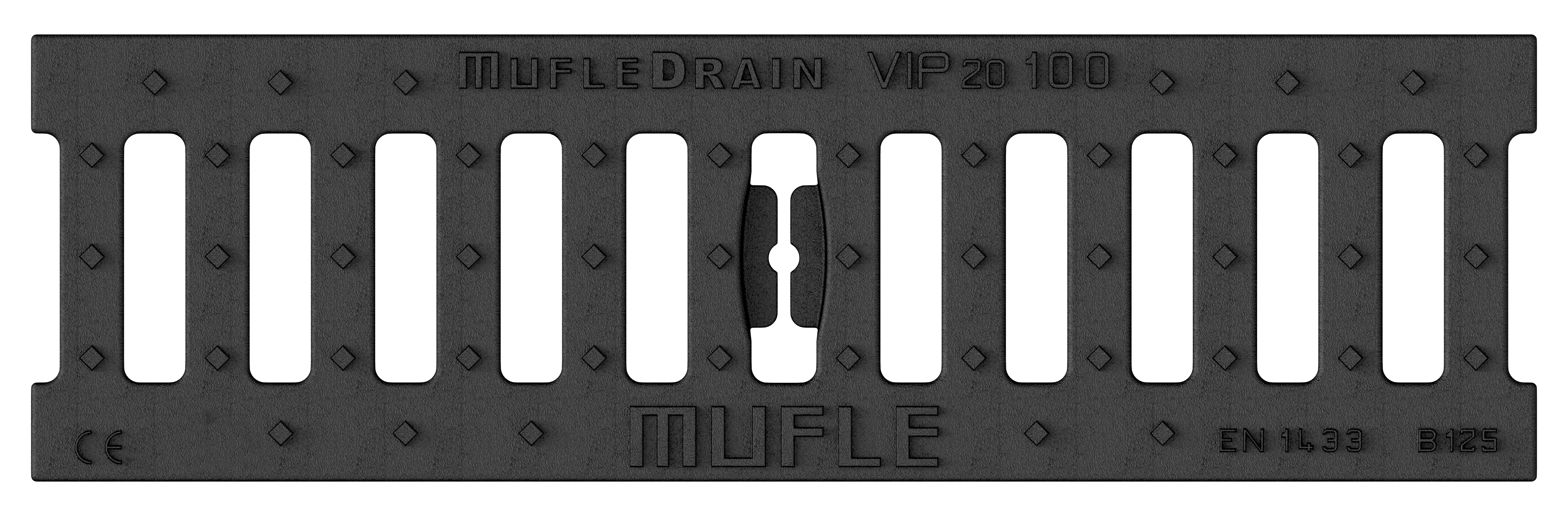

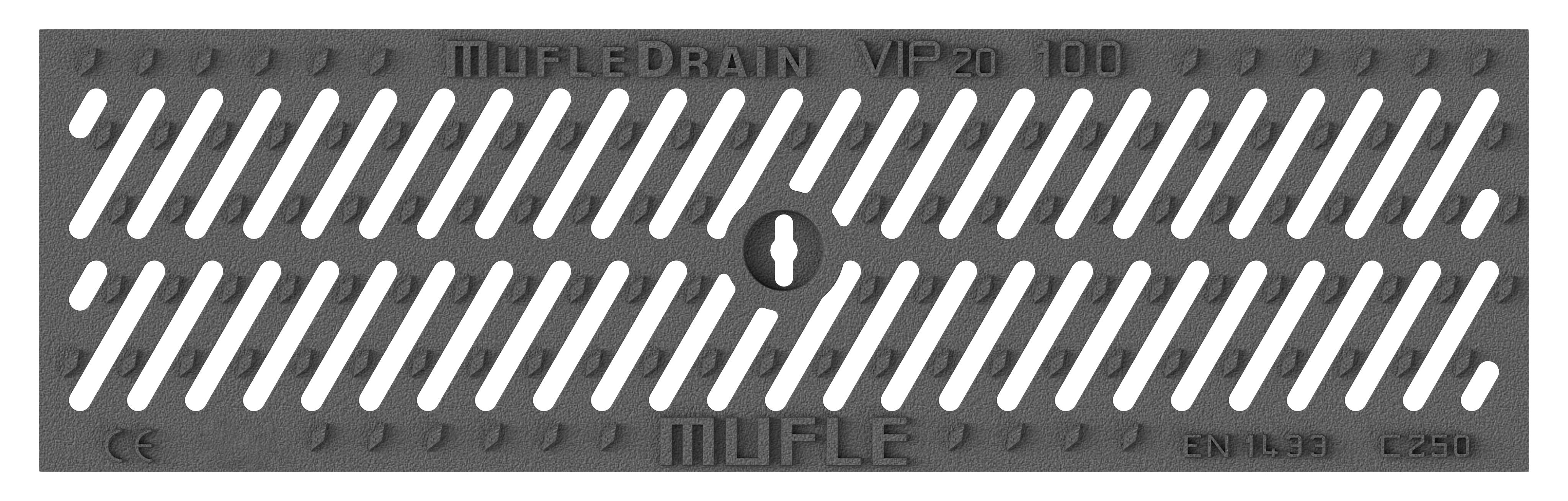

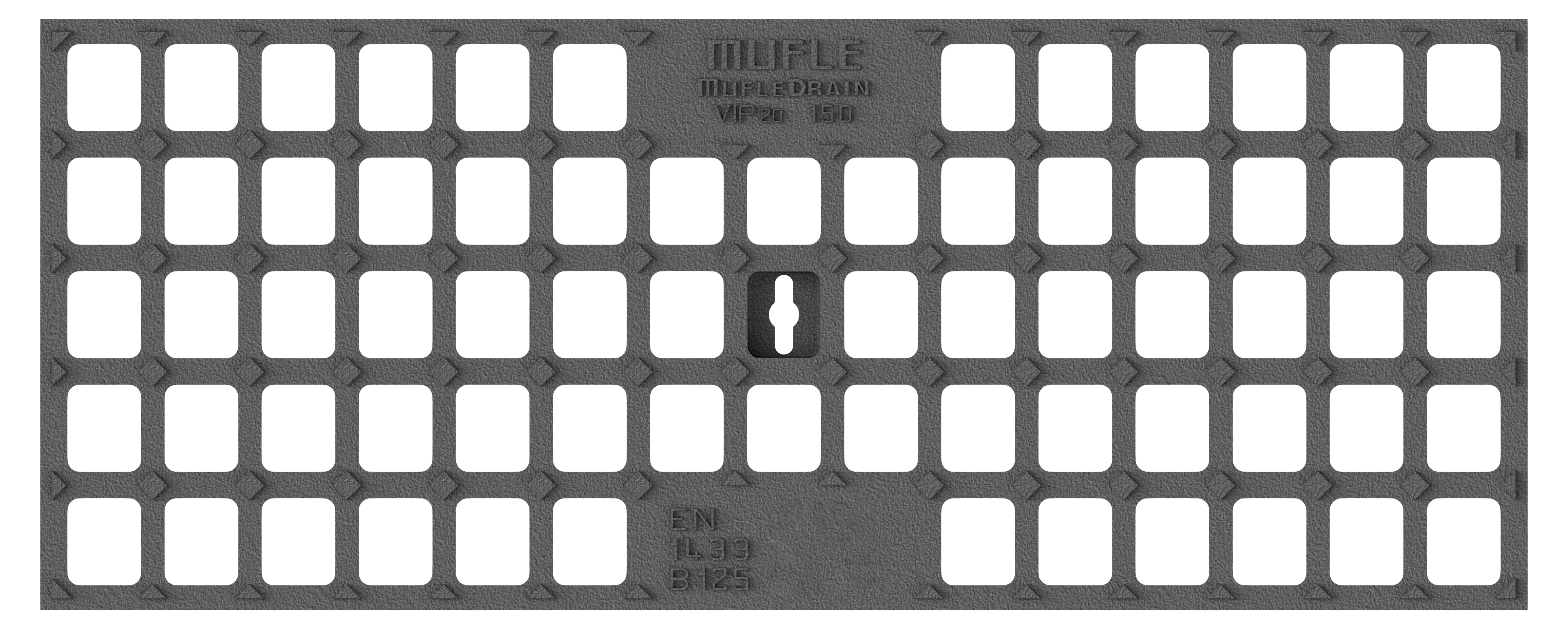

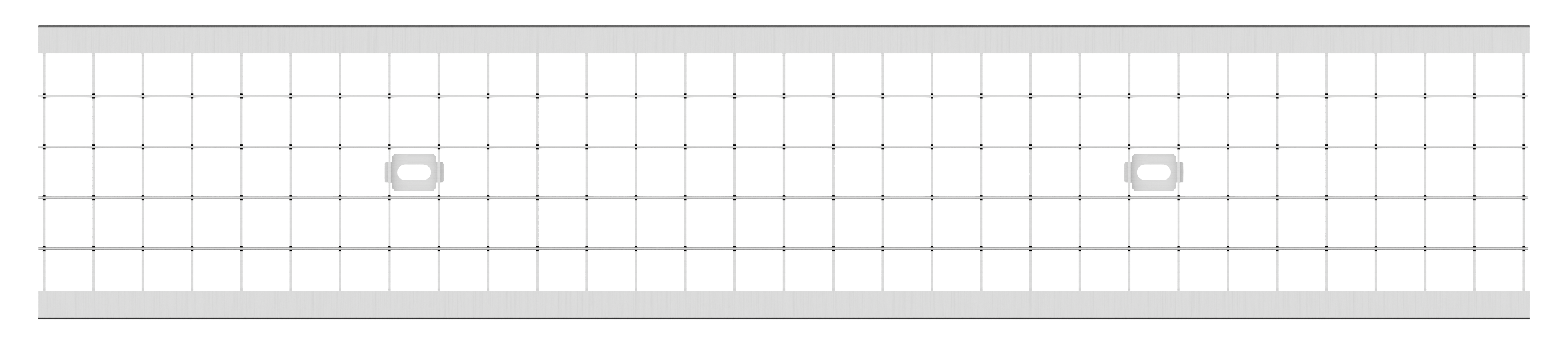

Specific fixing systems on each grating.
Special pieces for corners, “T” couplings and cross couplings are available
